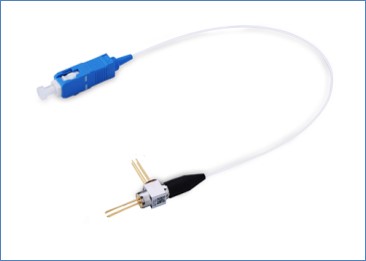

• - Laser Diode Module : Laser beam from 300~400um Laser Diode Chip Precision alignment using optical system, alignment technology to concentrate on optical fiber of several um size.
•
• - We can provide package for 405~1625nm Laser module (TO can, Uncooled, Cooled type, etc)

• - Low threshold current, Low operating current
• - High output power, Wide temperature operation
• - High reliability, Long operation lifetime
• - Analogue Applications for the optical repeater
• - MQW ( Multiple Quantum Well ) active layer by the MOCVD

• Bi-Direction OSA(BOSA)
• - CWDM LD/PD Bi-Directional OSA
• - High output power, Wide Temperature operation
• - Analog/Digital Application

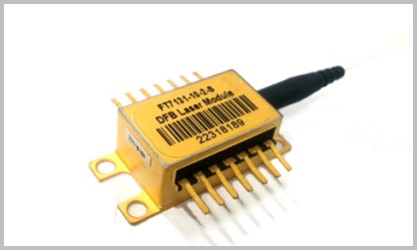

• The Butterfly DFB laser modules are intended for use in the transmission of broadband analog signals. Their high linearity makes them especially suitable for CATVbroadcast and narrowcast applications. All critical components, including optical isolator, TEC, thermistor, laser, and monitor photodiode are hermetically sealed in a butterfly package.

• - Wide bandwidth(1~12GHz)
• - Analog Application
• - InGaAs PIN PD
• - High reliability and long operation

• - Wide bandwidth(1~12GHz)
• - Analog Application
• - InGaAs PIN PD
• - High reliability and long operation
