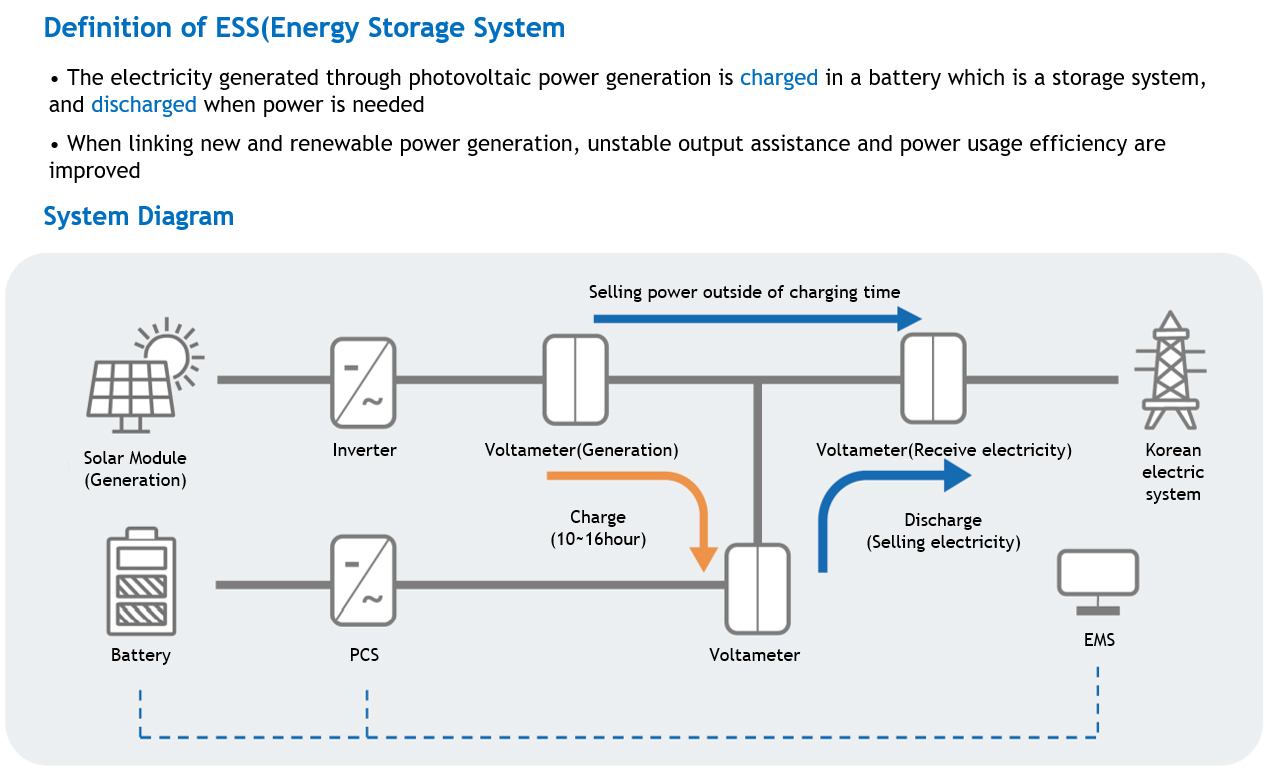

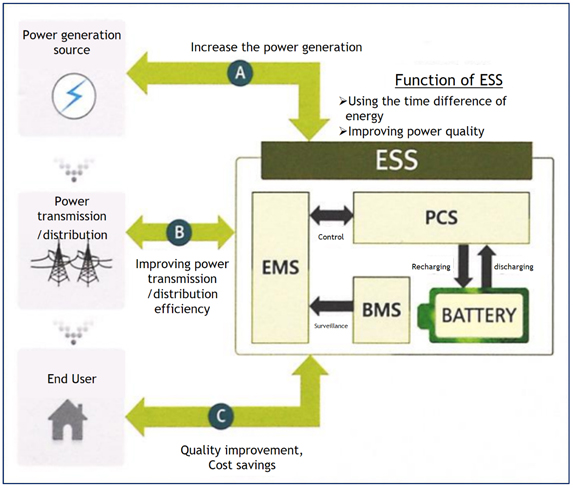

• 1.EMS(Energy Monitoring System)
• The amount of solar power needed to operate ESS, amount of ESS recharge, amount of discharge, monitor ESS facilities and operation status
• It has the function of controlling and operating ESS to enable optimal operation
• 2.PMS(Power Management System)
• The roll of monitoring and controlling the battery and PCS
• A system for ESS monitoring and control operation
• 3.PCS(Power Condition System)
• Valid/Invalid power control and power quality compensation
• Remote control and monitoring function, system connection/sole operation multi-purpose
• 4.BMS(Battery Management System)
• Battery charge/discharge status is provided to the external interface
• Performs protection functions of overcharge/over discharge
• 5.Battery
• Acts as a medium to store energy
• Power supply through discharge if necessary

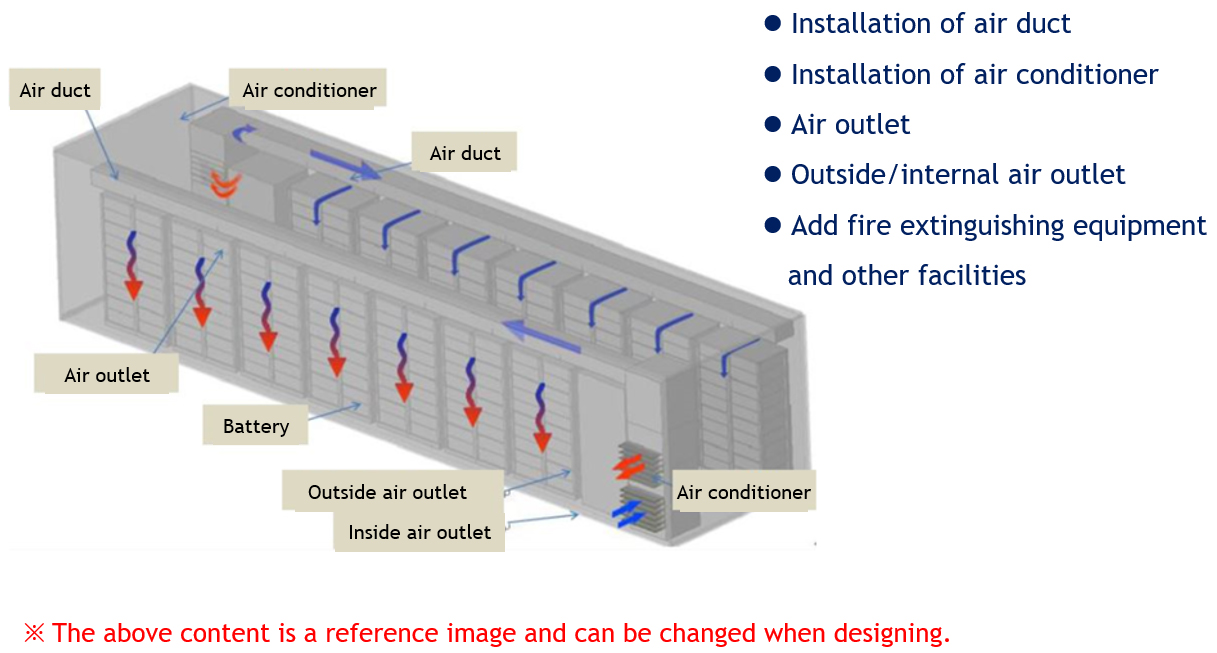

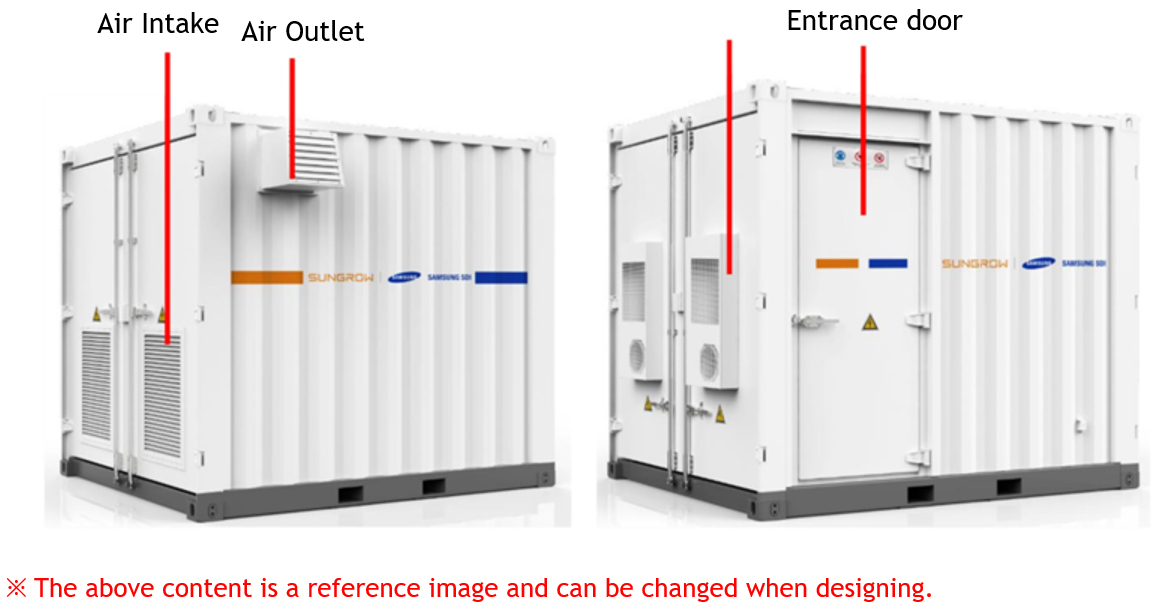

• Installation of air duct
• Installation of air conditioner
• Air outlet
• Outside/internal air outlet
• Add fire extinguishing equipment and other facilities
